THE POWER TO DO MORE, ON YOUR TERMS
Extend your BIM workflows and precisely capture accurate as-built conditions

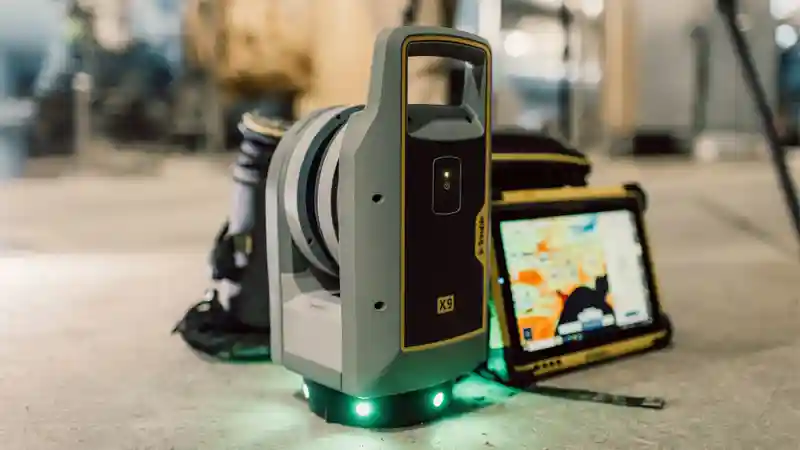

The Trimble X9 3D Laser Scanning Platform leverages advanced Trimble technology to deliver exceptional range, accuracy, speed, and sensitivity for superior performance.
With flexible licensing options, you can choose the scanning capabilities that best match your project requirements.
Versatile, advanced scanning and imaging you can depend on.
Scan speed
Up to 500 kHz
Scan range
0.6 m–40 m
Scan times
< 2 min to 7 min
Range Noise
< 1.5 mm @ 30 m on 80% albedo
3D Point Accuracy
3.0 mm @20 m
Imaging
3 coaxial, calibrated 10MP cameras
Ingress Protection
IP55
Dual Axis Compensator
Accuracy <3″, Range ±10°
Interface
WLAN via Trimble FieldLink or Perspective for Windows or Perspective Mobile
Laser Class
Laser class 1, eye safe in accordance with IEC EN60825-1
Scan speed
Up to 500 kHz
Scan range
0.6 m–80 m
Scan times
< 2 min to 7 min
Range Noise
< 1.5 mm @ 30 m on 80% albedo
3D Point Accuracy
3.0 mm @20 m
Imaging
3 coaxial, calibrated 10MP cameras
Ingress Protection
IP55
Dual Axis Compensator
Accuracy <3″, Range ±10°
Interface
WLAN via Trimble FieldLink or Perspective for Windows or Perspective Mobile
Laser Class
Laser class 1, eye safe in accordance with IEC EN60825-1
Scan speed
Up to 1000 kHz
Scan range
0.6 m–150 m
Scan times
< 1 min to 6 min
Range Noise
< 1.5 mm @ 30 m on 80% albedo
3D Point Accuracy
3.0 mm @20 m
Imaging
3 coaxial, calibrated 10MP cameras
Ingress Protection
IP55
Dual Axis Compensator
Accuracy <3″, Range ±10°
Interface
WLAN via Trimble FieldLink or Perspective for Windows or Perspective Mobile
Laser Class
Laser class 1, eye safe in accordance with IEC EN60825-1
The future of your work
Trimble solutions enable efficient, high-quality workflows and seamless data exchange, delivering measurable value to a diverse, global user base.
Trimble X9
